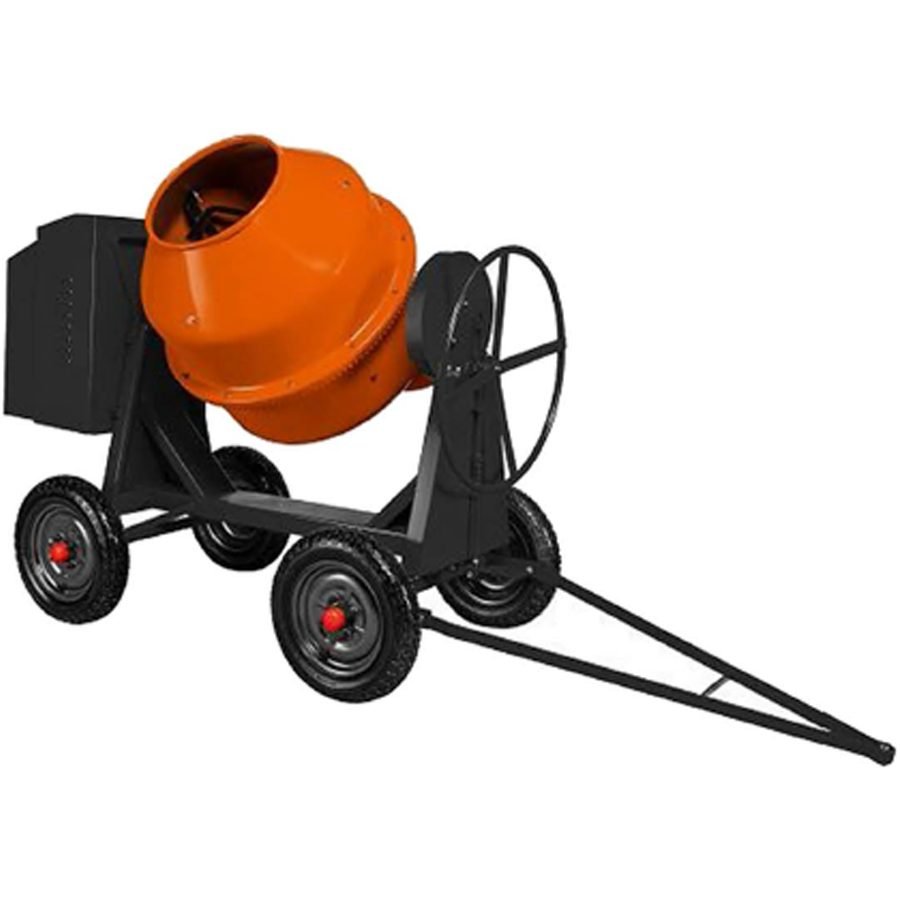

Shinsetsu SCM-400L Series Concrete Mixer
Shinsetsu SCM-400L Series Concrete Mixer The Shinsetsu SCM-400L Series Concrete Mixer is designed for mixing cement, aggregates, and water for construction and concreting applications. With a 200L discharge capacity and 240L maximum feed capacity, this mixer is suitable for jobsite concrete preparation, masonry work, and general construction use. This concrete mixer is available in electric, gasoline, and diesel variants to match different site power requirements. It is built with a durable mixing drum, towing handle, and wheeled frame for practical movement around the work area.
Sold per unit. Brand and stock confirmed on your quote.
Details
| Brand | Shinsetsu |
| Category | Machineries |
| Type | Concrete & Masonry |
| Sold per | unit |
Full specifications are confirmed with your quote.
Description
- Concrete mixer for construction and masonry applications
- 200L discharge capacity
- 240L maximum feed capacity
- Available in electric, gasoline, and diesel variants
- 20-30rpm drum speed
- Suitable for mixing cement, aggregates, and water Variant Specification Electric Type (SCM-400L.E) 3.0kW / 1400 r/min / 320kg Gasoline Type (SCM-400 L.G) 7HP / 1800 r/min / 290kg Diesel Type (SCM-400L.D) 6HP / r/min / 300kg Model SCM-400L.E / SCM-400 L.G / SCM-400L.D Discharge Capacity 200L Max Feed Capacity 240L Productivity 4m³/h Power 3.0kW / 7HP / 6HP Speed 1400 r/min / 1800 r/min / r/min Drum Speed 20-30rpm Max Aggregate 20-30mm Mixing Time 100s Tire Model 400-12 Max Drag Line Speed 20km/h Dimension 2100 x 1000 x 1650mm Machine Weight 320kg / 290kg / 300kg
What’s Included
1 pc Shinsetsu SCM-400L Series Concrete Mixer
