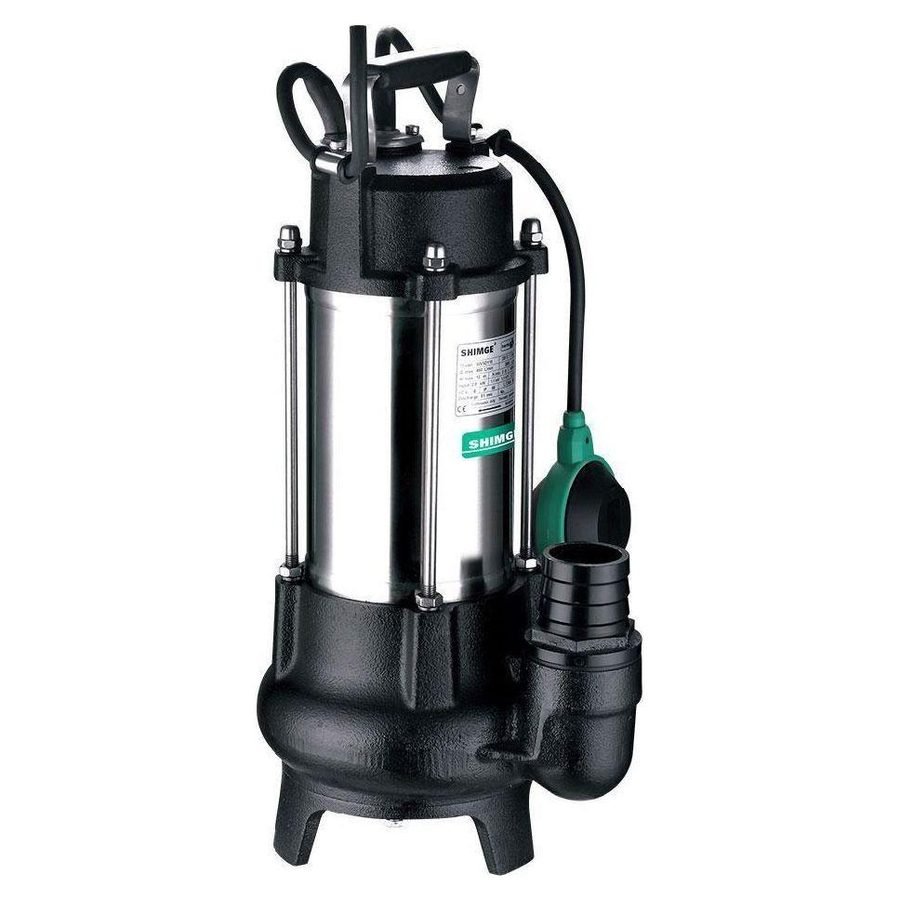

Shimge WVSD Stainless Submersible Pump Sewage Type With Float Switch

Product details

It features a 100% copper thermally-protected motor, stainless steel motor case, and float switch operation for dependable automatic pumping in demanding drainage applications. Key Benefits • 100% Copper thermally-protected motor for reliable operation • Stainless steel motor case with dry submersible motor construction • Suitable for sewage, muddy water, dirty water, and domestic wastewater handling Product Overview WVSD series pumps are widely applied in industrial, agriculture, mining, construction, municipal, and environmental protection applications. They are suitable for draining water containing particles such as short fibers, paper scraps, soft solid, muddy water, dirty water, domestic wastewater, sewage, and manure.

These pumps are ideal equipment for agricultural irrigation and drainage, pool silt cleaning, and site construction. The unit features a motor case in SS301, 304 filter screen, dry submersible motor, 51 mm outlet diameter, and stainless-steel shaft extension with carbide double sides mechanical sealing. Do not apply to the location with explosion-proof requirements.

Ideal Applications • Agricultural irrigation and drainage • Pool silt cleaning • Site construction and wastewater drainage Technical Specifications Type Stainless Submersible Pump Sewage Type with Float Switch Motor Dry Submersible Motor Motor Case SS301 Filter Screen 304 Outlet Diameter (mm) 51 Power Supply 220V-60Hz Models WVSD55F WVSD75F WVSD110F WVSD150F Rated Power (Kw) WVSD55F - 0.55 WVSD75F - 0.75 WVSD110F - 1.

1 WVSD150F - 1.5 Rated Power (HP) WVSD55F - 0.75 WVSD75F - 1 WVSD110F - 1.

5 WVSD150F - 2 Max Flow WVSD55F - 18 WVSD75F - 21 WVSD110F - 27 WVSD150F - 30 Max Head (m) WVSD55F - 10 WVSD75F - 12 WVSD110F - 13 WVSD150F - 14 Head Range (m) WVSD55F - 5-9 WVSD75F - 5-9 WVSD110F - 5-9 WVSD150F - 5-9 Gross Weight (kg) WVSD55F - 17 WVSD75F - 19 WVSD110F - 23 WVSD150F - 25 Model / Description.
