Makita HP332DWYE 12V Cordless Hammer Drill (CXT-Series)
It's what's INSIDE that counts. Makita HP332DWYE 12V Cordless Hammer Drill (CXT-Series) • Ultra-compact design and more work amount thanks to the newly developed BL motor and newly developed 12V max slide Lithium-Ion battery • BL motor delivers 35 N·m of max torque • BL motor is electronically controlled to optimize battery energy use for longer run time per charge • BL motor with high power to weight and size ratio • BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life • BL motor efficiently uses energy to match torque and RPM to the changing demands of the application • 0- IPM for fast hammer drilling in masonry materials • Compact and ergonomic design at only 168 mm long • Lightweight for reduced operator fatigue • 12V max slide battery design enables the tool to stand on its own for user convenience • Multi-contact terminals ensure stable contact with battery even under extreme vibration • Ergonomically designed handle with soft grip provides increased comfort • Built-in LED light with pre-glow and afterglow functions illuminates the work area • Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size • Variable 2-speed (0-450 & 0- RPM) for a wide range of drilling, fastening and hammer drilling applications • Best possible ergonomic handle for drilling applications • Convenient 10 mm keyless chuck for quick bit changes • Battery protection circuit protects against overloading, over-discharging and over-heating • 20 Clutch settings and drill mode for added fastening control.
Product details
• Reversing switch is conveniently located. Mechanical 2-speed gearing; • High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque. • Electric brake for maximum productivity and increased operator safety.
• Ideal for work in tight spaces. • Durable, reversible belt clip convenient for temporary tool hanging. • eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions Specifications
K Factor Drilling into Metal: 1.5 m/s² Sound Pressure Level 82 dB(A) Sound Power Level 93 dB(A) Noise K Factor 3 dB(A) Dimensions (L x W x H) 168x66x217 mm (6-5/8″x2-5/8″x8-1/2″) Net weight 1.1 – 1.3 kg (2.4 – 2.8 lbs.)
Specifications
- Per Minute (IPM) High / Low
- 0 – / 0 –
- No Load Speed (RPM) High / Low
- 0 – / 0 – 450 Max
- Fastening Torque Hard / Soft
- 35 / 21 N·m (310 / 190 in.lbs.) Max Lock Torque 32 N·m (280 in.lbs.) Vibration Level
- Hammer Drilling into Concrete
- 12.5 m/s² Vibration K Factor
- Hammer Drilling into Concrete
- 1.5 m/s² Vibration
- Level Drilling into Metal
- 2.5 m/s² or less Vibration
- Inclusions

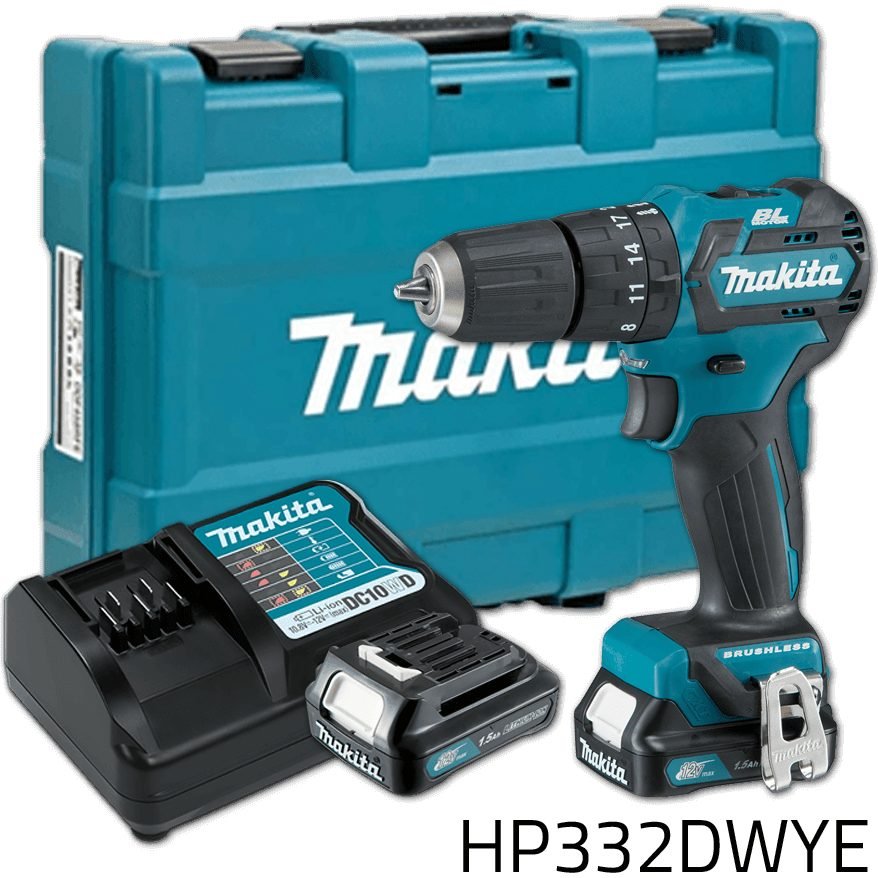

- Phillips Bit, Belt Clip, Battery, Charger Lifetime Service Warranty
- Brand
- Makita
- Category
- Power Tools
- Subcategory
- Drills & Drivers
- Sold per
- unit
- Pricing
- Request a quote (RFQ)
- Delivery
- Nationwide, same-day quote
