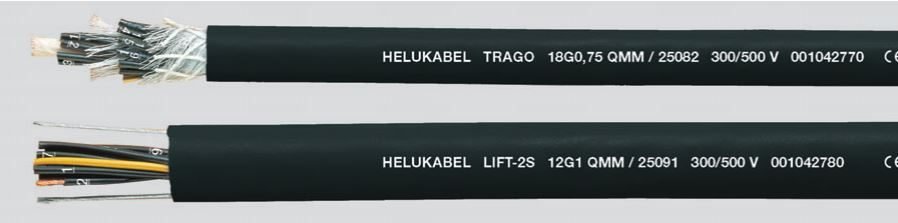

Helukabel TRAGO / Lift-2S
Technical Data Lift hoist control cables with strain bearing element . Special PVC-compound for core and jacket, adapted to DIN VDE 0250 Temperature Range flexing -15 °C to +40 °C fixed installation -40 °C to +70 °C Nominal Voltage U0/U 300/500 V Test Voltage 3000 V Minimum Bending Radius approx.
- Brand
- On request
- Category
- Electrical Supply
- Subcategory
- Wires & Cables
- Sold per
- pc
- Pricing
- Request a quote (RFQ)
- Delivery
- Nationwide, same-day quote
Product details
20x cable ø Cable Structure Bare copper, fine wire conductors, bunch stranded to DIN VDE 0295 cl. 6, BS 6360 cl. 6 and IEC 60228 cl.
6 Special PVC core insulation, YI3 to DIN VDE 0207 part 4 Core coding to DIN VDE 0293 Green-yellow earth core Test Voltage 3000 V Application These cables are used as control or feeder cables in lifts and hoists. The special attention given to both production and material quality for these cables has made them ideal even for use under extreme conditions. HELUKABEL®-Lift-2S has also proven itself to be ideally suited for installation in conveyor systems and manual control units.
The external steel support wires can be dismounted without damaging the cable insulation. = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
