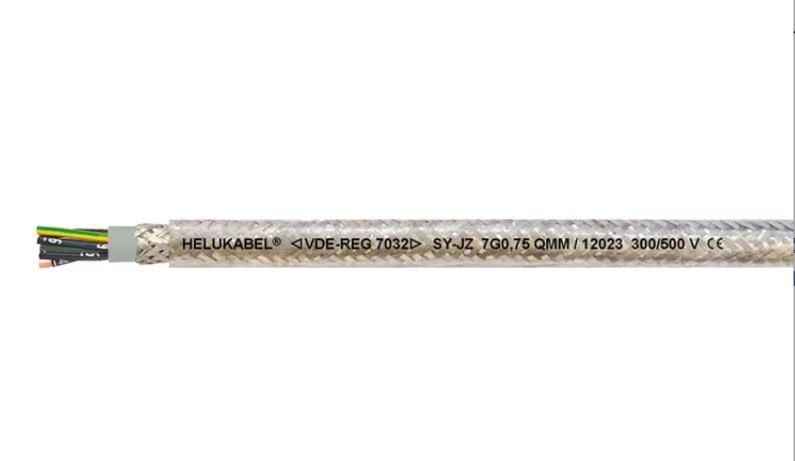

Helukabel SY-JZ
Description largely oil resistant transparent outer sheath with PVC inner sheath galvanised steel wire braid to protect against mechanical damages versatile use in many industries, particularly in machine and plant construction Cable Structure Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IE
- Inner sheath
- PVC Steel wire braid, galvanised
- PVC Sheath colour
- transparent
- Brand
- On request
- Category
- Electrical Supply
- Subcategory
- Wires & Cables
- Sold per
- pc
- Pricing
- Request a quote (RFQ)
- Delivery
- Nationwide, same-day quote
Product details
C 60228 Class 5 Core insulation: PVC, compound type Z 7225 Core identification acc. to DIN VDE 0293-334, black cores with consecutive labeling in white digits
Protective conductor: starting with 3 cores, G = with protective conductor GN-YE, in the outer layer, x = without protective conductor (OZ) Cores stranded in layers with optimal lay lengths
Length marking: in metres Test flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2 certifications and approvals: EAC VDE-Reg.-No. 7032, valid for temperature range up to +70°C Application Used as a connection and control cable for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, however, not suitable for outdoor use in machine tools, plant construction and data technology. Due to the dense braiding, the cable is well protected against mechanical damage. The galvanisation of the braid prevents corrosion and guarantees improved solderability of the braid.
