Greenlee VW-20HFR V-Watch Personal Voltage Detector (2400VAC-Up)
Greenlee VW-20HFR V-Watch Personal Voltage Detector (2400VAC-up) • Provides another level of safety for line crews, storm restoration workers and first responders • Alerts user to the proximity of electric fields or energized electrical equipment with a loud alarm and bright lights • Frequency of alarm increases as the user gets closer to the electrical hazard • Detects voltage above 4kVAC line-to-line • Typical initial warning distance is about 7 ft from a 4kVAC conductor • Warning distance increases with higher voltages • Field replaceable 9V battery with low battery indicator Specifications Sub Brand HDE Type Personal voltage detector Frequency Rating 50/60Hz Voltage Rating 2400VAC and above - Do not use below 2400VAC line-to-ground Indication Type Audible and visual alert Model VW-20H Overall Length 3.
Product details

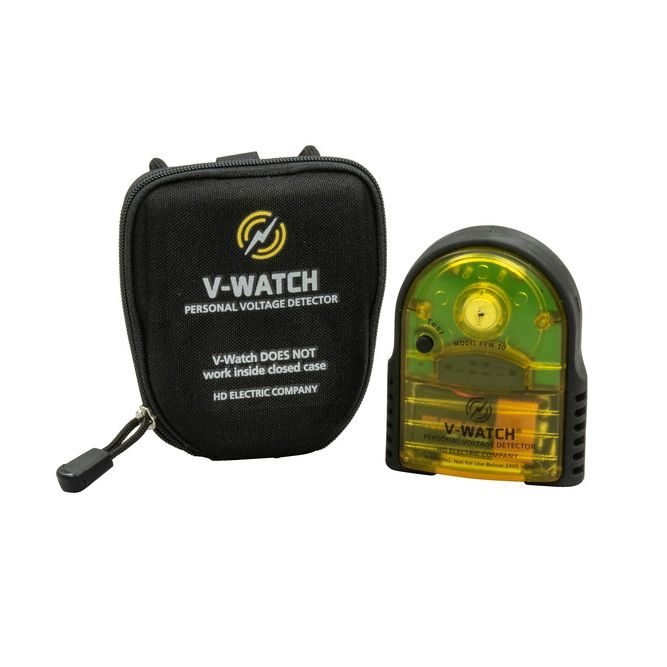

5" Included VW-20H Detector with Carrying Case •
Sensitivity: Factory set at 50/60 Hertz sensing threshold (first beep) - will only detect AC voltage - do not use below 2400 Volts line-to-ground •
Dimensions: 3.5” x 2.88” x 1.25” (8.89 cm x 7.32 cm x 3.18 cm) *Greenlee® may make improvements and/or changes in the specifications of products at any time, in its sole discretion, without notice or obligation and further reserves the right to change or discontinue models.
Specifications
- Typical Warning Distance
- About 7 feet (2.13 m.) from a 4kV (2.4kV line-to-ground) AC conductor •
- Voltage Range
- 2400VAC line-to-ground and above •
- Operating Temperature
- -20˚ to +120˚F (-29˚ to 49˚C) •
- Operating Frequency
- 50Hz/60Hz •
- Battery
- 9V alkaline 1604A, IEC 6LR61 - life is 2 years in storage, 1 year typical usage •
- Beeper Sound Pressure Level
- 100 decibels •
- Water Withstand
- Protected from falling rain per IEC-529, Level 2 •
- Weight with Battery
- 5.2 oz. (147 g) •
- Brand
- On request
- Category
- Electrical Supply
- Sold per
- pc
- Pricing
- Request a quote (RFQ)
- Delivery
- Nationwide, same-day quote
