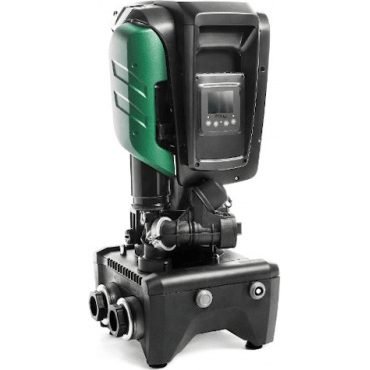

DAB E.SYBOX MAX Electronic Pressure Water Pump Set
Electronic pressure sets ESYBOX MAX 60/120 M208-240 Pump Esybox Max is an integrated pumping system for water pressurization in commercial building service.
Product details
It is composed of modular elements that allow different configurations: single, double, triple or quadruple system are possible, to cover the needs of medium/large condominiums and high buildings (even over 14 floors). Each unit consists of the hydraulic connection base and the pumping unit which includes an electronic vertical multi-impeller pump, display, Wi-Fi module, pressure sensors, non-return valve on delivery and an expansion tank. The innovative support base of the pumping unit and the wireless communication between the pumps make it possible to assemble the unit directly at the installation site (O.
The variable frequency drive keeps the pressure constant according to the request and also thanks to the water-cooled permanent magnet motor, it allows greater efficiency, silence and energy savings. Compatible with the DConnect service.
TYPE OF PUMPED LIQUID: Clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral
Specifications
- Specifications FLOW RATE
- Up to 17,4 m3/h (
- For single unit) HEAD
- 113 m
- LIQUID TEMPERATURE
- (=+50°
- C) MAXIMUM AMBIENT TEMPERATURE
- (=+55°
- C) MAXIMUM INLET PRESSURE
- 5 bar
- OPERATION PRESSURE
- 12 bar / 1200 k
- Pa CONSTANT PRESSURE RANGE
- 1-12 bar (3 bar by default)
- F IMPELLER MATERIAL
- Technopolymer
- SINGLE PHASE POWER INPUT
- 208-240V 50/60
- Hz THREE PHASE POWER INPUT
- 380-480
